Statistical Power for the Generic z-Test

Source: R/generic.z.test.R
power.z.test.Rd

Determines the power or the non-centrality parameter (mean) for the generic z-Test with (optional) Type 1 and Type 2 error plots.

Usage

power.z.test(
  power = NULL,
  mean = NULL,
  sd = 1,
  null.mean = 0,
  null.sd = 1,
  req.sign = "+",
  alpha = 0.05,
  alternative = c("two.sided", "one.sided", "two.one.sided"),
  plot = TRUE,
  verbose = 1,
  utf = FALSE
)

Arguments

power

statistical power \((1-\beta)\); either power, or mean needs to be NULL (and is then estimated).

mean

mean of the alternative; either power, or mean needs to be NULL (and is then estimated).

sd

standard deviation of the alternative. Do not change this value except when some sort of variance correction is applied (e.g. as in logistic and Poisson regressions).

null.mean

mean of the null. When alternative = "two.one.sided", the function expects two values in the form c(lower, upper). If a single value is provided, it is interpreted as the absolute bound and automatically expanded to c(-value, +value).

null.sd

standard deviation of the null. Do not change this value except when some sort of correction is applied.

req.sign

whether mean is expected to be greater '+1', less than '-1', or within '0' the null.mean bounds; only relevant if mean is to be estimated.

alpha

type 1 error rate, defined as the probability of incorrectly rejecting a true null hypothesis, denoted as \(\alpha\).

alternative

character; the direction or type of the hypothesis test: "two.sided", "one.sided", or "two.one.sided". "two.one.sided" is used for equivalence and minimal effect testing.

plot

logical; FALSE switches off Type 1 and Type 2 error plot. TRUE by default.

verbose

1 by default (returns test, hypotheses, and results), if 2 a more detailed output is given (plus key parameters and definitions), if 0 no output is printed on the console.

utf

logical; whether the output should show Unicode characters (if encoding allows for it). FALSE by default.

Value

power

statistical power \((1-\beta)\).

mean

mean of the alternative distribution.

sd

standard deviation of the alternative distribution.

null.mean

mean of the null distribution.

null.sd

standard deviation of the null distribution.

alpha

type 1 error rate (user-specified).

z.alpha

critical value(s).

beta

type 2 error rate.

type.s

type S error rate (only for two-tailed test).

type.m

type M error rate (only for two-tailed test).

Examples

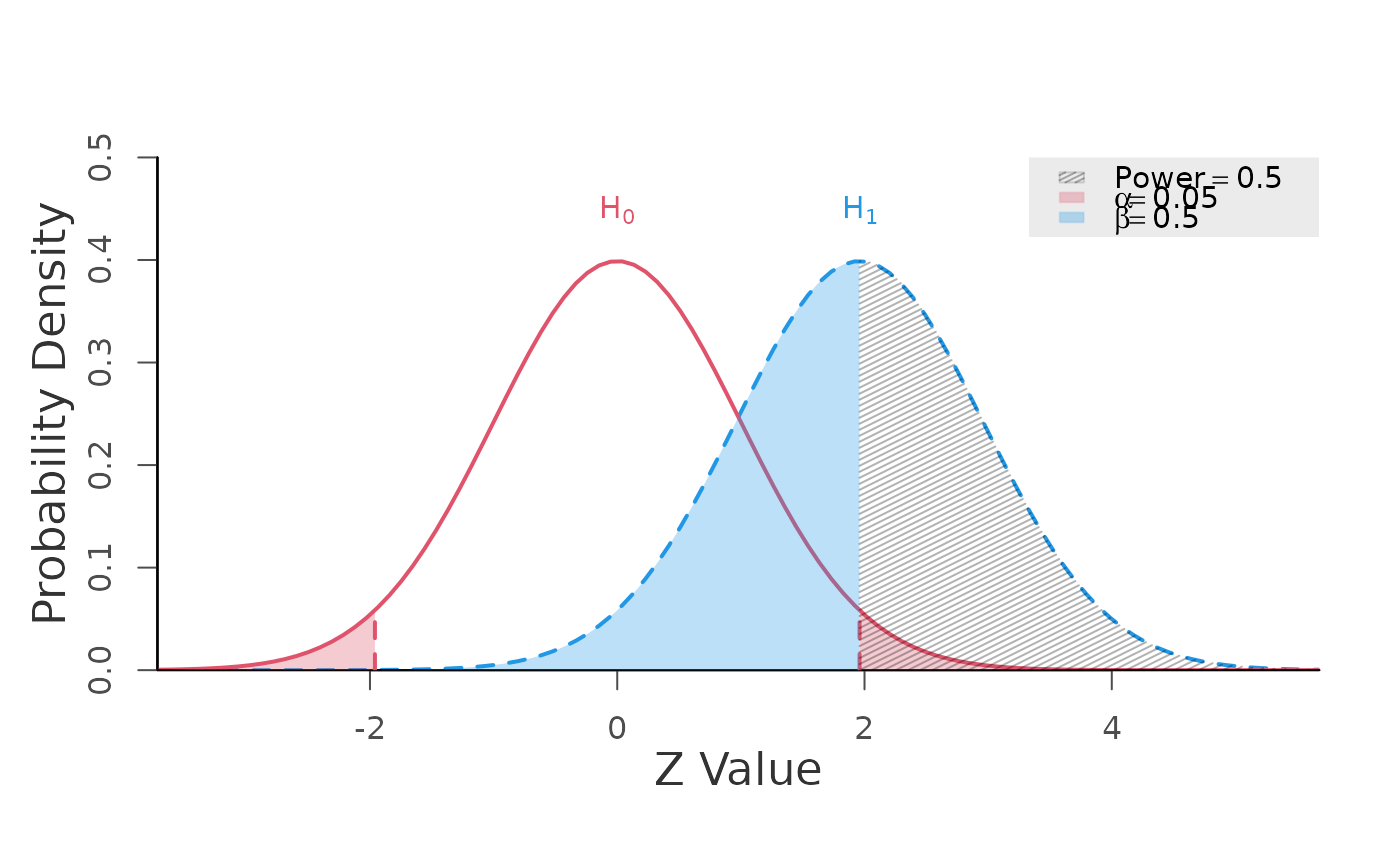

# two-sided
# power defined as the probability of observing test statistics greater than
# the positive critical value OR less than the negative critical value
power.z.test(mean = 1.96, alpha = 0.05, alternative = "two.sided")

#> +--------------------------------------------------+
#> |                POWER CALCULATION                 |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean  = null.mean
#>   H1 (Alternative) : mean != null.mean
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 1.960 (vs. null.mean = 0)
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.500
#>   Statistical Power    = 0.500  <<
#>
power.z.test(power = 0.80, alpha = 0.05, alternative = "two.sided")

#> +--------------------------------------------------+
#> |       MINIMUM DETECTABLE NCP CALCULATION         |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean  = null.mean
#>   H1 (Alternative) : mean != null.mean
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 2.802 (vs. null.mean = 0)  <<
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.200
#>   Statistical Power    = 0.800
#>

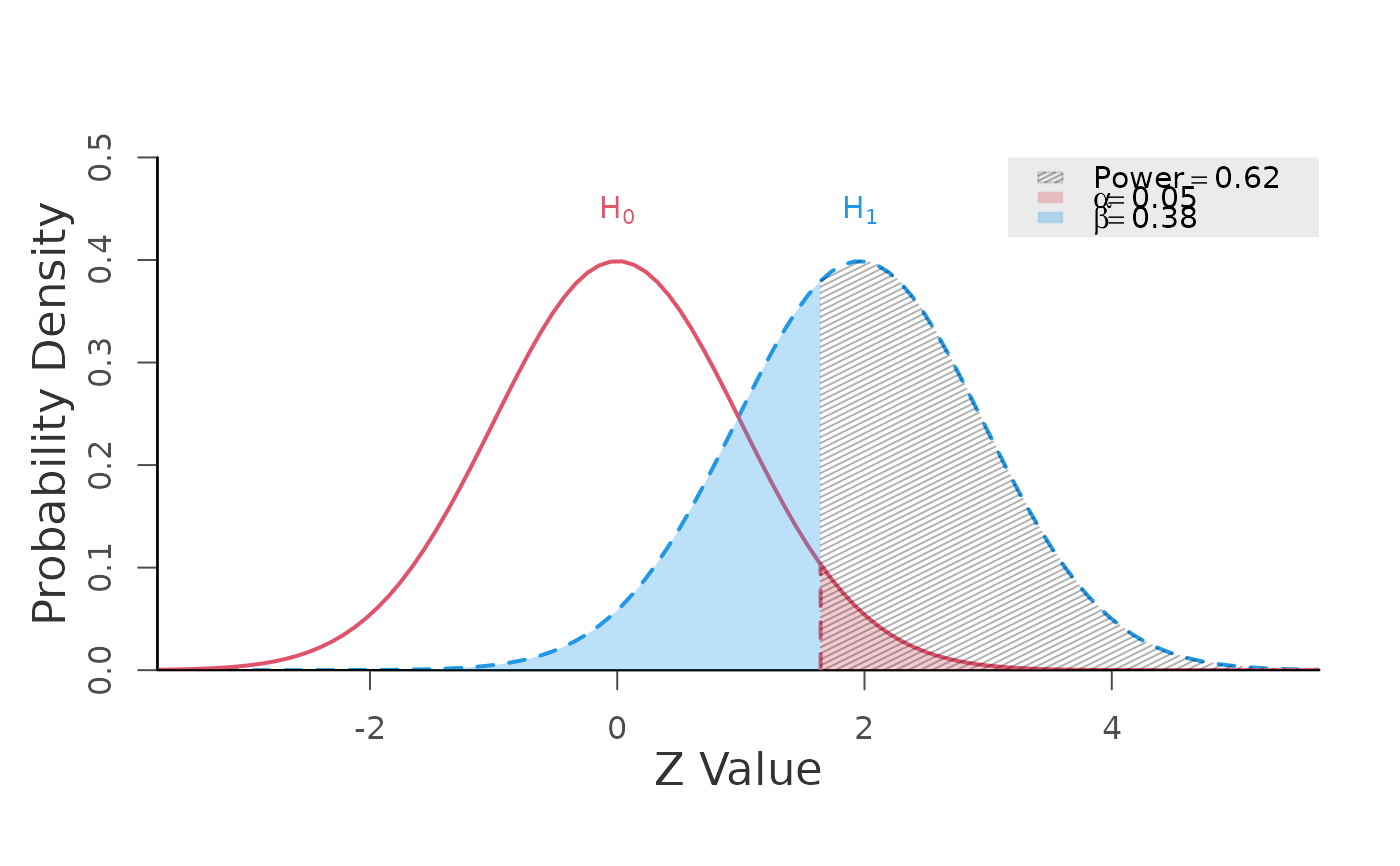

# one-sided
# power is defined as the probability of observing a test statistic greater
# than the critical value
power.z.test(mean = 1.96, alpha = 0.05, alternative = "one.sided")

#> +--------------------------------------------------+
#> |                POWER CALCULATION                 |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean <= null.mean
#>   H1 (Alternative) : mean  > null.mean
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 1.960 (vs. null.mean = 0)
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.376
#>   Statistical Power    = 0.624  <<
#>
power.z.test(power = 0.80, alpha = 0.05, alternative = "one.sided")

#> +--------------------------------------------------+
#> |       MINIMUM DETECTABLE NCP CALCULATION         |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean <= null.mean
#>   H1 (Alternative) : mean  > null.mean
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 2.486 (vs. null.mean = 0)  <<
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.200
#>   Statistical Power    = 0.800
#>

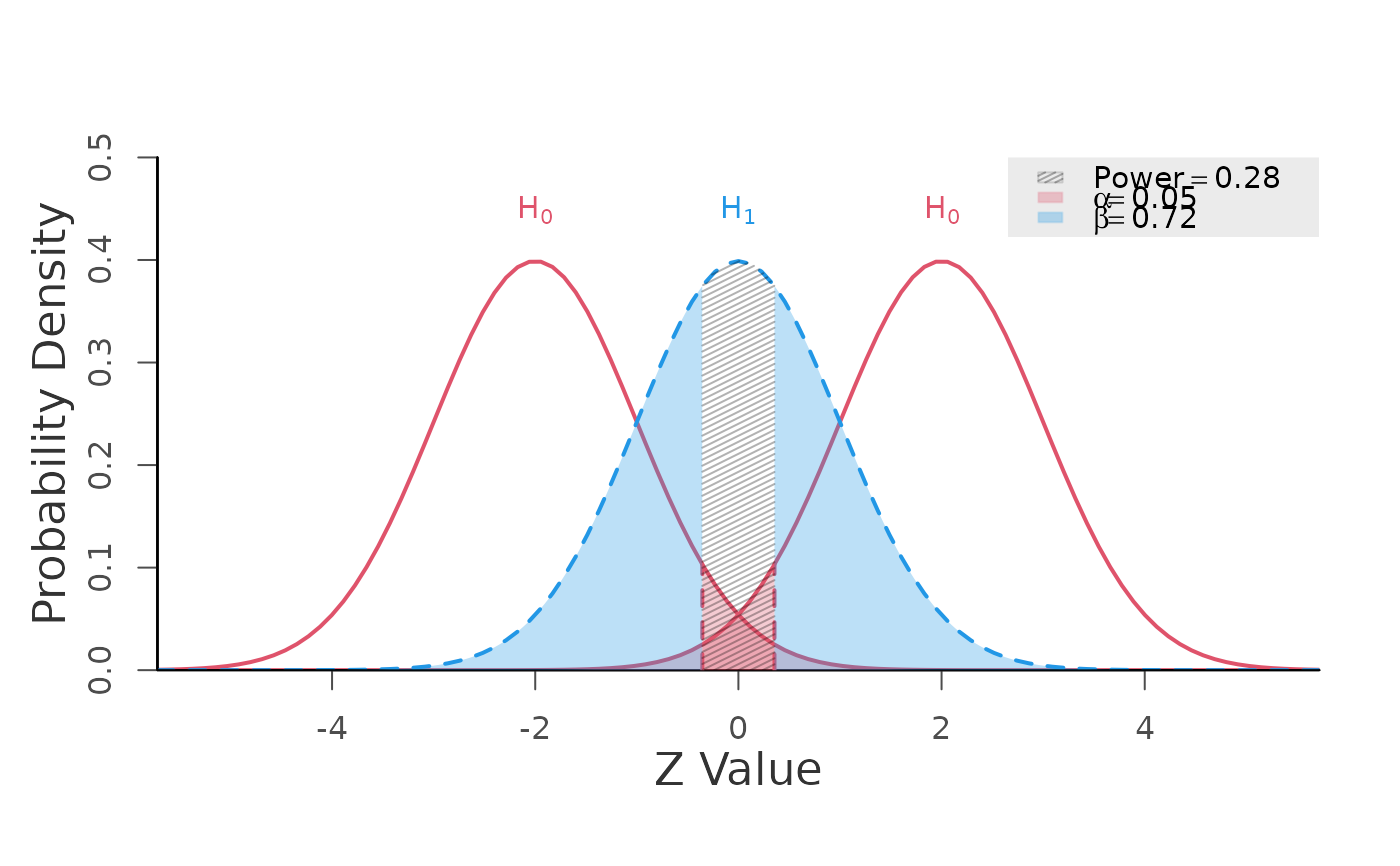

# equivalence
# power is defined as the probability of observing a test statistic greater
# than the upper critical value (for the lower bound) AND less than the
# lower critical value (for the upper bound)
power.z.test(mean = 0, null.mean = c(-2, 2), alpha = 0.05,
             alternative = "two.one.sided")

#> +--------------------------------------------------+
#> |                POWER CALCULATION                 |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean <= min(null.mean) or
#>                      mean >= max(null.mean)
#>   H1 (Alternative) : mean  > min(null.mean) and
#>                      mean  < max(null.mean)
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 0 (vs. null.mean = -2 and 2)
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.722
#>   Statistical Power    = 0.278  <<
#>
power.z.test(power = 0.80, req.sign = "0", null.mean = c(-2, 2),
             alpha = 0.05, alternative = "two.one.sided")
#> Warning: The target power rate cannot be achieved within the null bounds.

#> +--------------------------------------------------+
#> |       MINIMUM DETECTABLE NCP CALCULATION         |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean <= min(null.mean) or
#>                      mean >= max(null.mean)
#>   H1 (Alternative) : mean  > min(null.mean) and
#>                      mean  < max(null.mean)
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = -0.000 (vs. null.mean = -2 and 2)  <<
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.722
#>   Statistical Power    = 0.278
#>

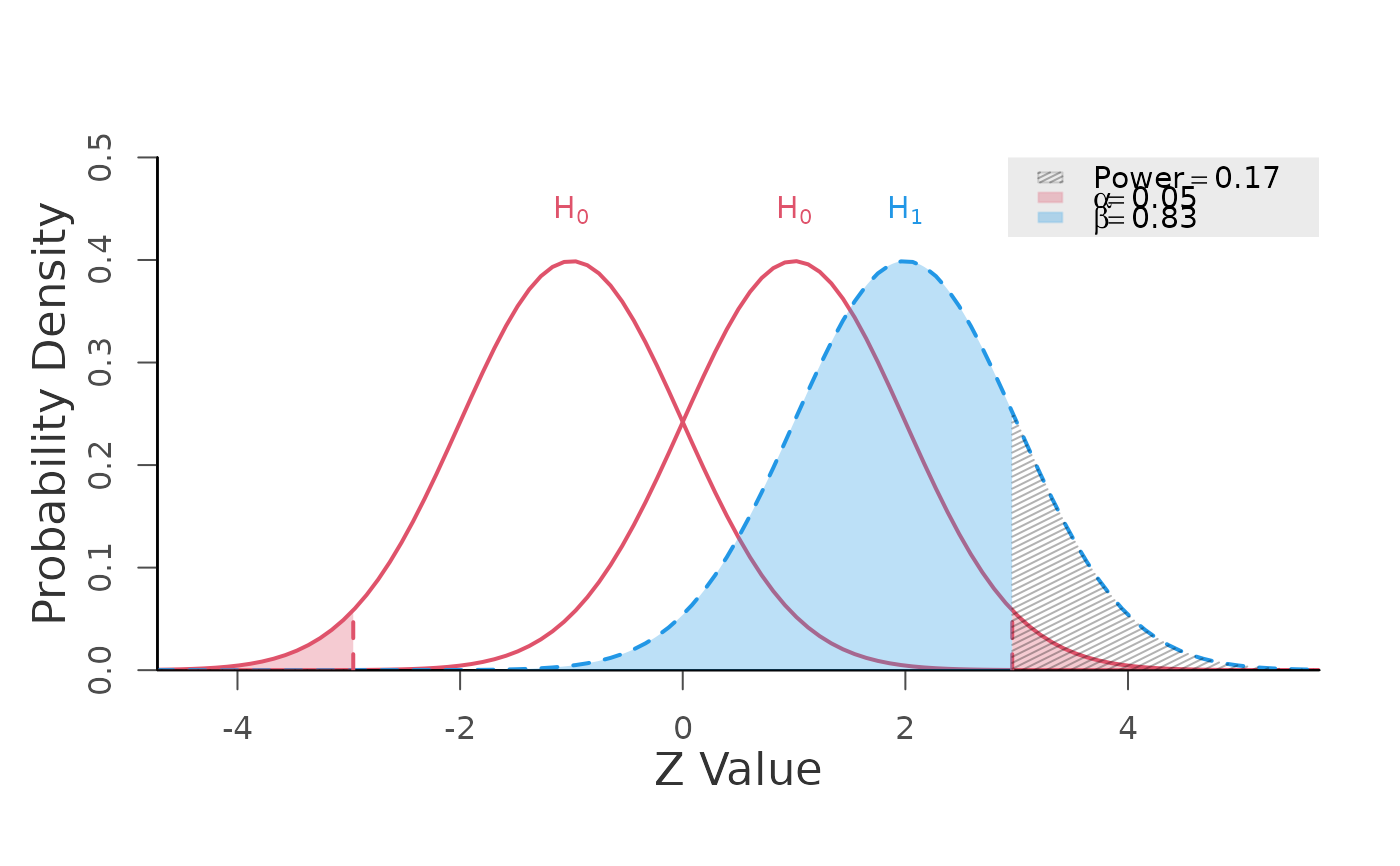

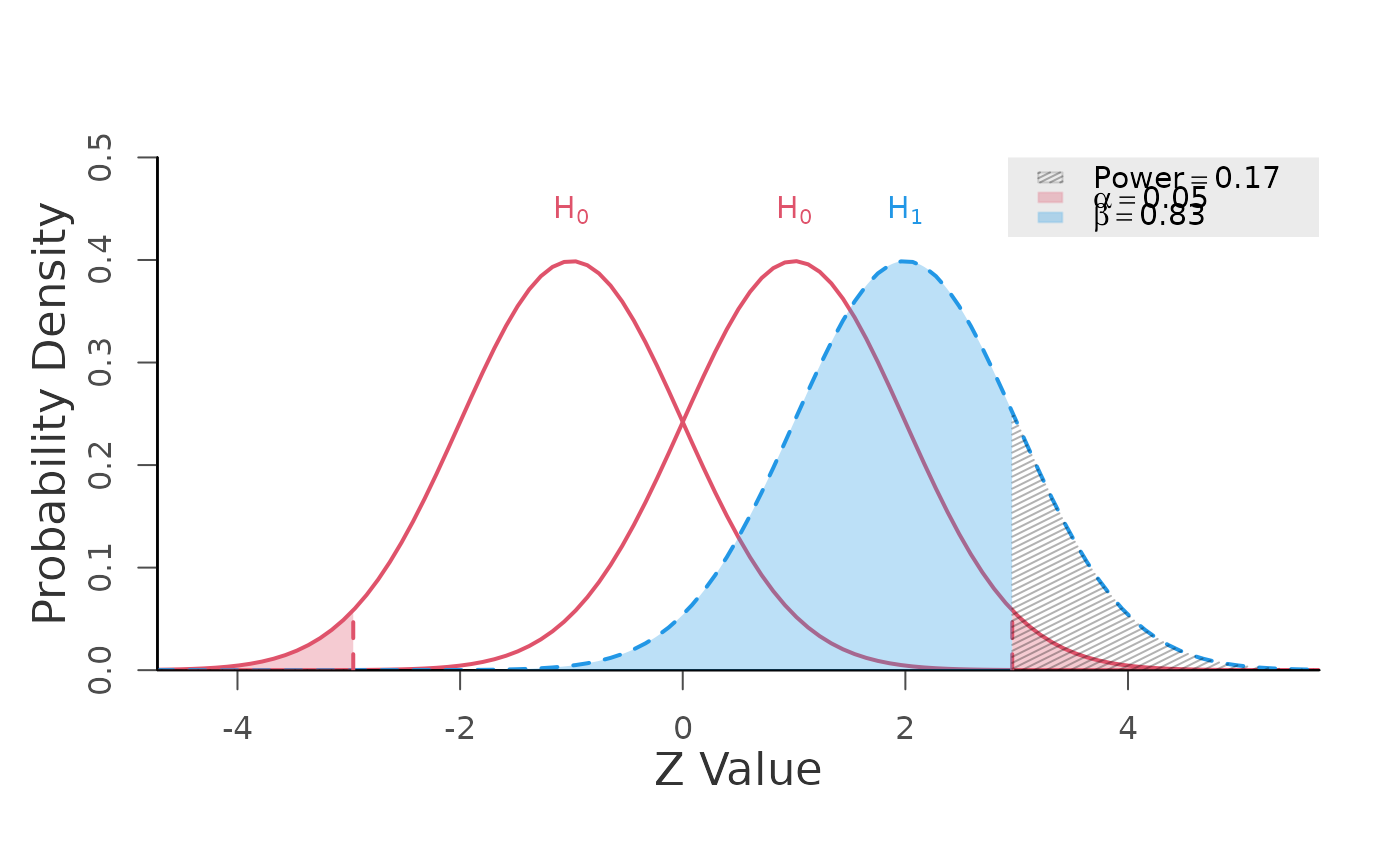

# minimal effect testing
# power is defined as the probability of observing a test statistic greater
# than the upper critical value (for the upper bound) OR less than the lower
# critical value (for the lower bound).
power.z.test(mean = 2, null.mean = c(-1, 1), alpha = 0.05,
             alternative = "two.one.sided")

#> +--------------------------------------------------+
#> |                POWER CALCULATION                 |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean >= min(null.mean) and
#>                      mean <= max(null.mean)
#>   H1 (Alternative) : mean  < min(null.mean) or
#>                      mean  > max(null.mean)
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 2 (vs. null.mean = -1 and 1)
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.831
#>   Statistical Power    = 0.169  <<
#>

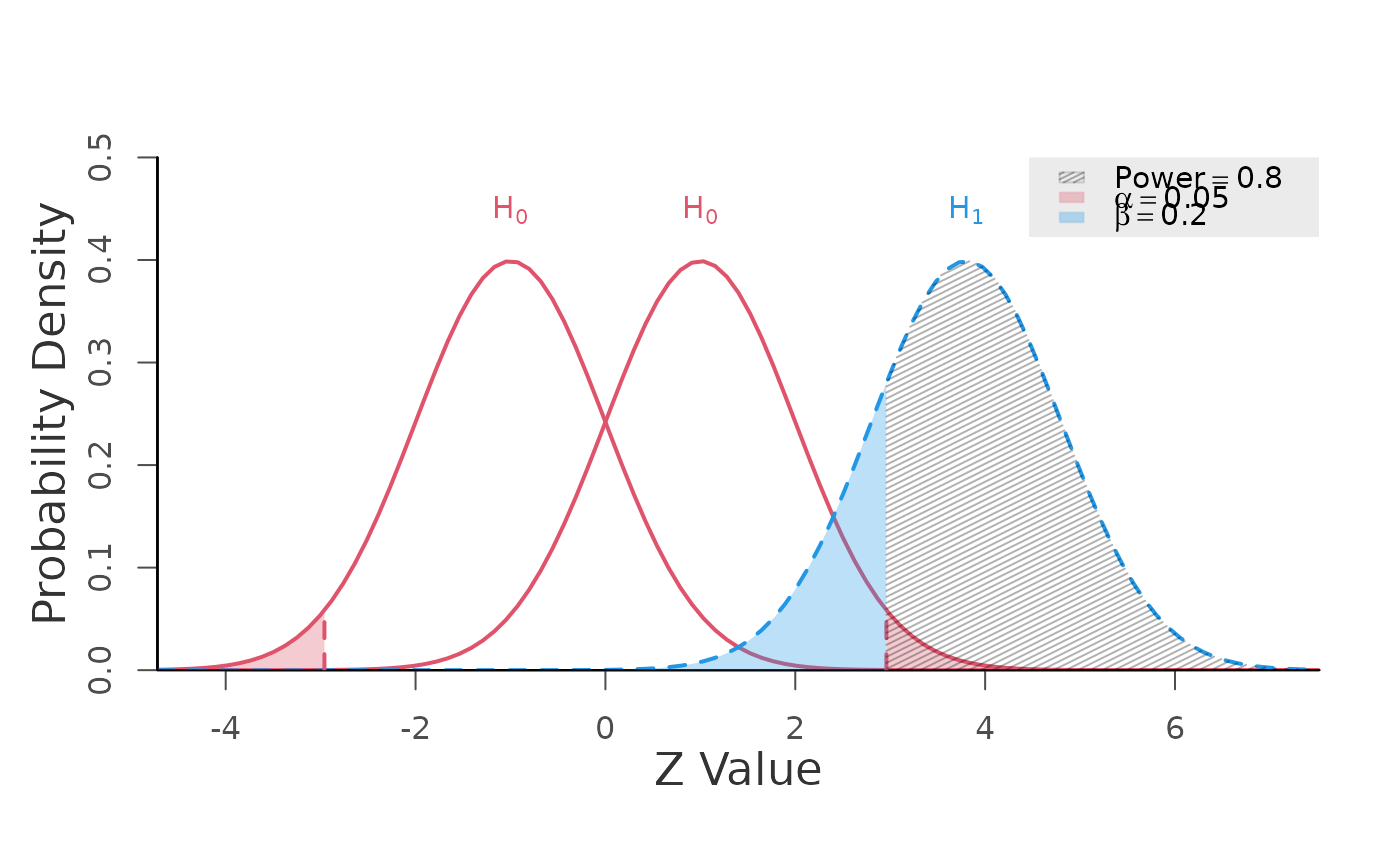

power.z.test(power = 0.80, req.sign = "+", null.mean = c(-1, 1),
             alpha = 0.05, alternative = "two.one.sided")

#> +--------------------------------------------------+
#> |       MINIMUM DETECTABLE NCP CALCULATION         |
#> +--------------------------------------------------+
#>
#> Generic z-Test
#>
#> ----------------------------------------------------
#> Hypotheses
#> ----------------------------------------------------
#>   H0 (Null)        : mean >= min(null.mean) and
#>                      mean <= max(null.mean)
#>   H1 (Alternative) : mean  < min(null.mean) or
#>                      mean  > max(null.mean)
#>
#> ----------------------------------------------------
#> Results
#> ----------------------------------------------------
#>   Target NCP (mean)    = 3.802 (vs. null.mean = -1 and 1)  <<
#>   Type 1 Error (alpha) = 0.050
#>   Type 2 Error (beta)  = 0.200
#>   Statistical Power    = 0.800
#>
